MORE STABLE AND EFFICIENT MILLING WITH A CUSTOM TOOL HOLDER

---

CHALLENGE:
During the production of our Außenleiter product family, we work on Miyano ANX42 SYY and Miyano BNE65 MYY driven-tool lathes, and we wanted to use a D63/d22 indexable shell end mill for synchronous peripheral milling operations. However, for these machine types, no axial driven tool holder with a D22 milling arbor was available, so we had to use an ER collet adapter. This resulted in a tool overhang of 121 mm, which reduced stability and machining efficiency.

SOLUTION:

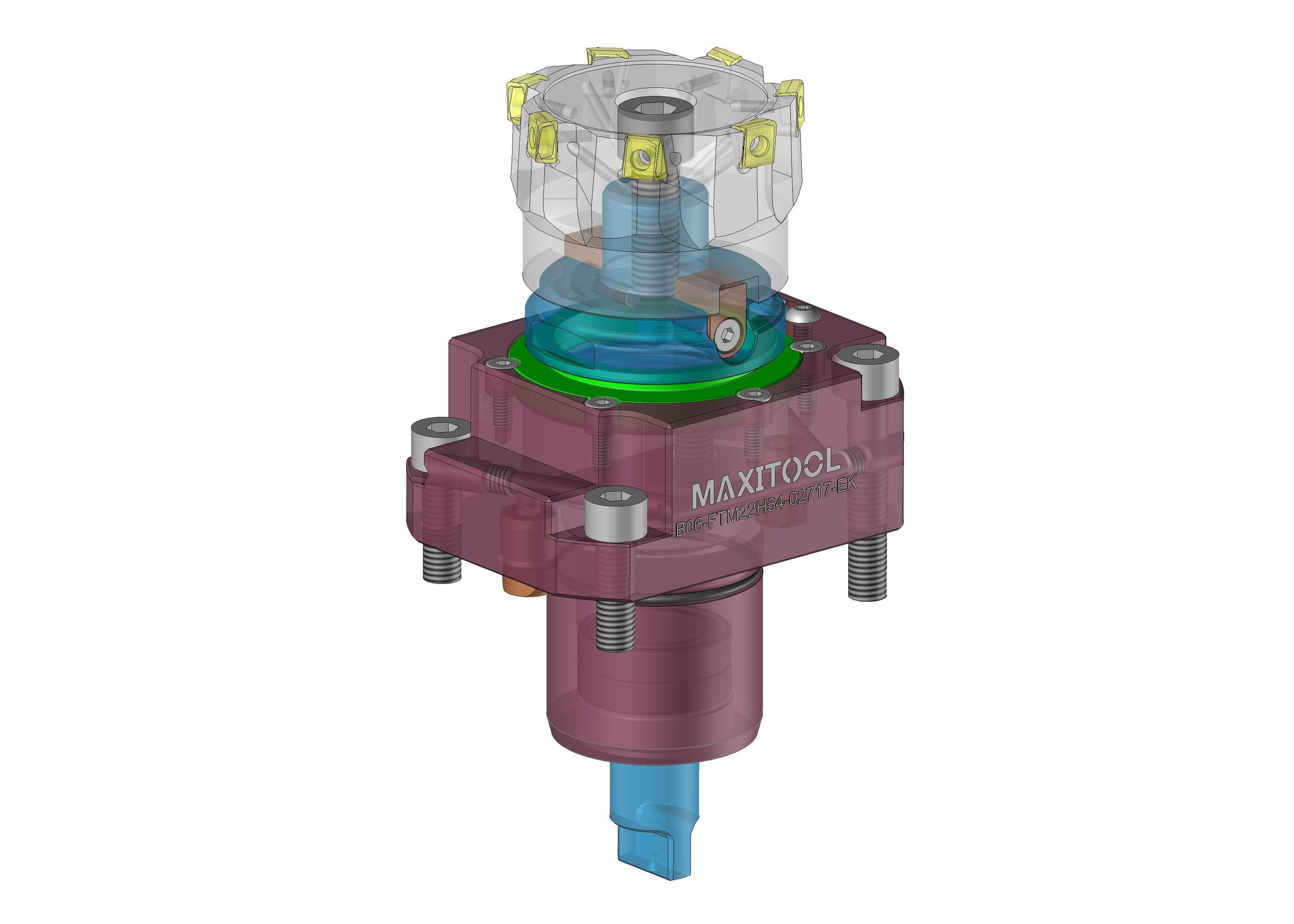

The MAXITOOL team provided the solution by designing and manufacturing a custom tool holder for us, ensuring shorter overhang and more stable tool clamping.

RESULT:
Within two months of placing the order, we received the tool holders, which we have been using continuously and with great satisfaction ever since. Thanks to this development, we achieved more stable machining, reduced vibration, and improved surface quality.

This was our first joint project with MAXITOOL, but since then we have successfully implemented several of their products in our production.

Róbert Gulácsi
SPINNER Hungária Kft.
